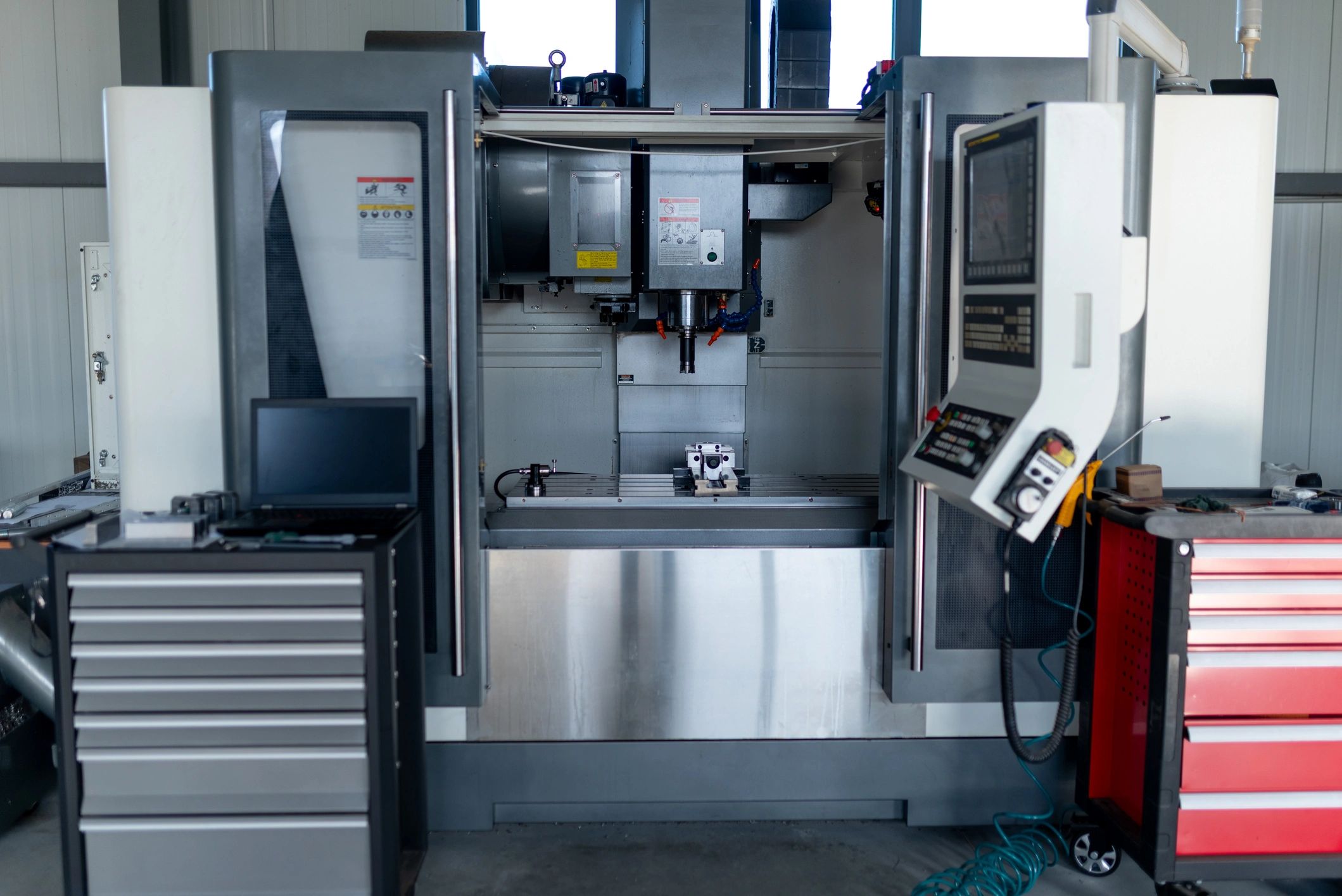

A milling machine is a powerful tool used to shape solid materials by removing material with a rotating cutter. It can create precise shapes, slots, and holes on metal, plastic, or composite workpieces. Different types — vertical, horizontal, and CNC milling machines — offer unique features and applications.

There are several types of milling machines, each designed for specific purposes. Here are some common types:

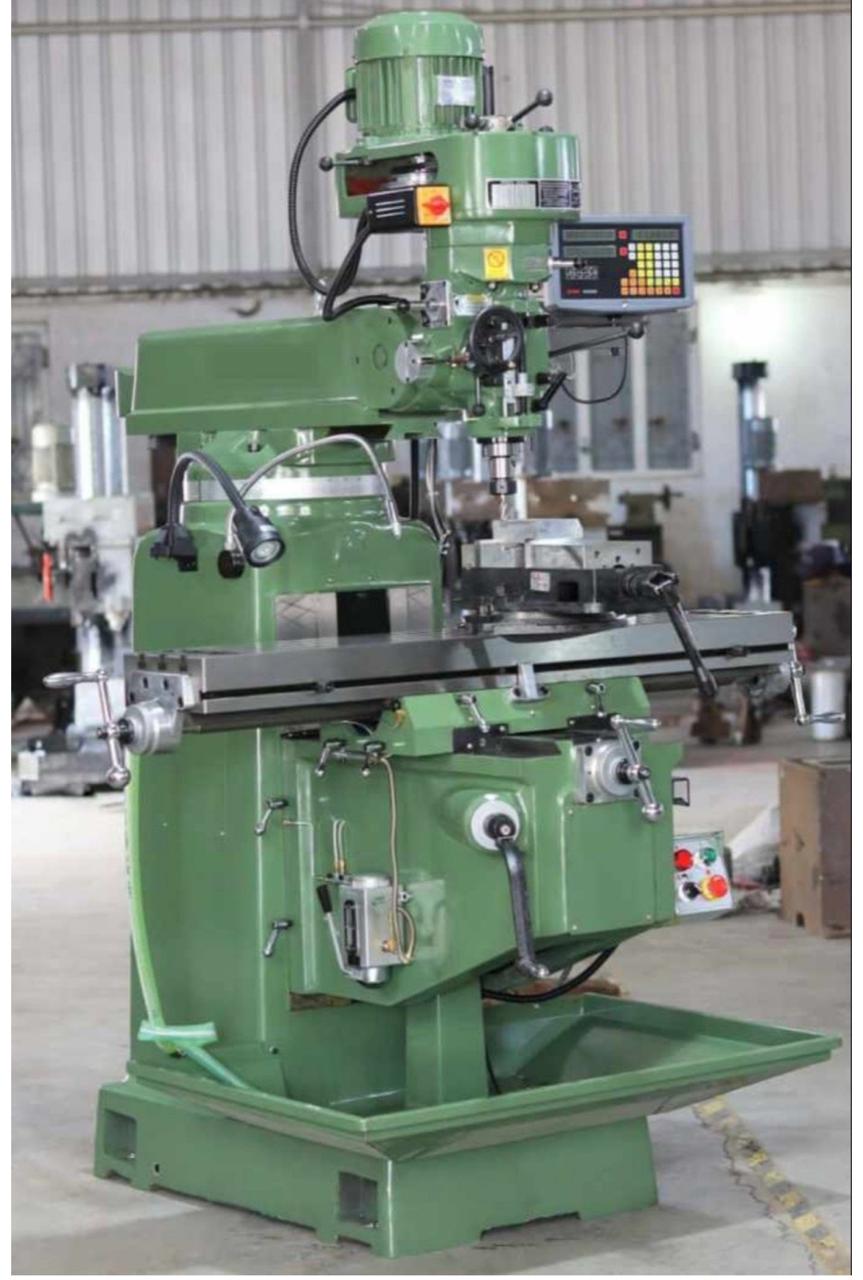

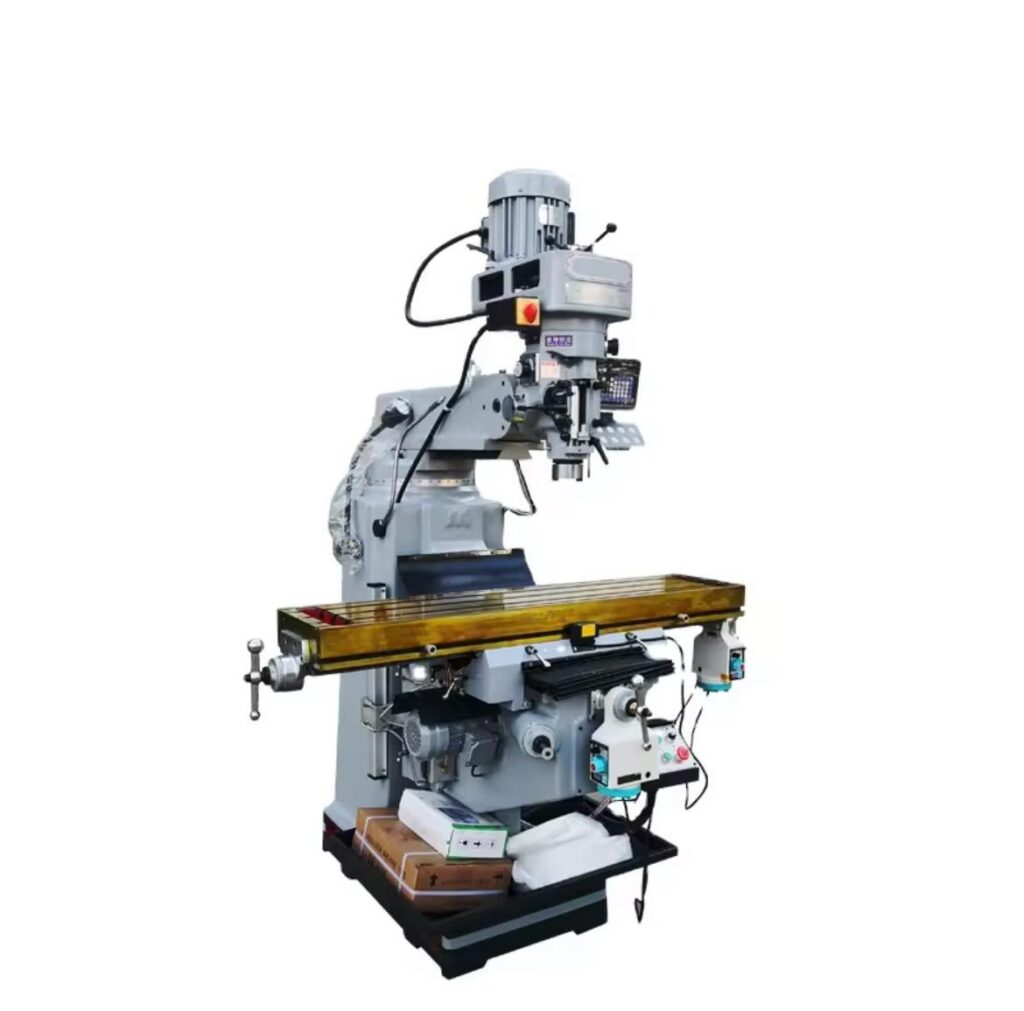

Vertical Milling Machine: The spindle in a vertical milling machine is positioned vertically. This type is suitable for end milling operations.

Horizontal Milling Machine: In a horizontal milling machine, the spindle is placed horizontally. It is often used for side milling and face milling.

Universal Milling Machine: A universal milling machine has the ability to swivel the cutter horizontally or vertically, making it versatile for various milling tasks.

The primary difference between vertical and horizontal milling machines lies in the orientation of the spindle axis and the worktable.

Vertical Milling Machine:

• Spindle axis is vertically oriented.
• Cutter or drill is attached to the spindle, moving up and down to remove material.
• Ideal for end milling operations and smaller workpieces.

Horizontal Milling Machine:

• Spindle axis is horizontally oriented.
• Cutter or drill is mounted on a horizontal arbor, moving side to side to remove material.
• Suitable for side milling, face milling, and larger workpieces.

In essence, it’s about the direction of the cutting forces and the type of operations each machine is best suited for.

Milling machines are versatile and can be used to machine a wide range of materials. Some common materials that can be milled with a milling machine include:

Metals:

• Aluminum
• Steel
• Stainless steel
• Brass
• Copper
• Titanium
• Cast iron

A milling machine vise is used to hold the workpiece securely in place during the milling process. It ensures stability and accuracy in machining.

A milling machine works by using a rotating cutter to remove material from a stationary workpiece. Here’s a brief overview of how it works:

Clamping the Workpiece: The workpiece is securely clamped to the milling machine table using a milling vise or other clamping mechanisms.

Setting the Cutter: A milling cutter, such as an end mill or face mill, is mounted on the milling machine spindle. The cutter’s position and depth are set based on the desired machining operation.

Selecting Speed and Feed: The milling machine’s speed and feed rates are selected based on the material being machined and the type of cutter used. This ensures optimal cutting conditions.

Initiating the Cut: The milling machine is turned on, and the cutter is brought into contact with the workpiece. The cutter’s rotation, combined with the movement of the workpiece or the milling machine table, removes material.

Controlling Cutter Movement: The milling machine’s table can be moved in multiple directions (X, Y, and Z axes) to control the cutter’s path and create the desired shape on the workpiece.

Creating Features: As the cutter moves across the workpiece, it creates features such as slots, pockets, contours, or other shapes, depending on the programmed toolpaths.

Adjusting Parameters: Machinists may adjust the milling machine’s parameters, such as depth of cut and cutting speed, to achieve the desired finish and accuracy.

Removing Material Incrementally: Material is removed incrementally, with the milling machine making multiple passes until the final dimensions and surface finish are achieved.

Completing the Operation: Once the milling operation is complete, the milling machine can be turned off, and the machined workpiece is unclamped from the table.

In essence, a milling machine removes material from a workpiece using a rotating cutter, and the movement of the cutter and workpiece is controlled to achieve precise and accurate machining. The versatility of milling machines allows for a wide range of operations and the creation of intricate parts with different shapes and features.
